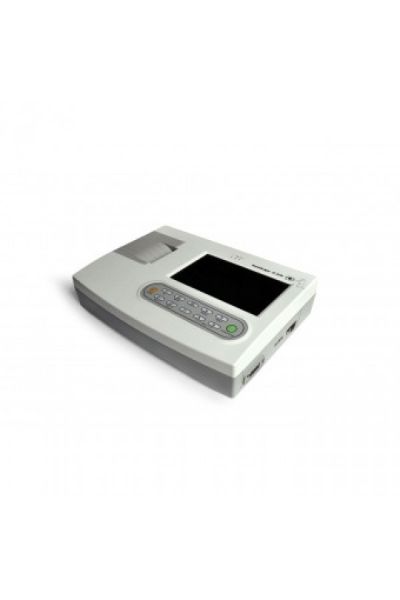

SONOSCAPE IE30V ECG
The IE30V is equipped with large memory capacity to save up to 2000 cases. It's streamline workflow and easy-to-use design accelerates the veterinary diagnosis.
7-channel colour TFT veterinary ECG machine.
Acquisition mode: 7-lead simultaneous acquisition
Input circuit: Floating ground inputting with anti- defibrillation protective circuit
Display: 7 inches color TFT
Waveform display: 7 leads
Storage: 2000 ECGs
Recording format: 1, 1+R
3 Recording modes: automatic/manual/rhythm
Time Constant: ≥ 3.2 s
Frequency response: 0.05Hz~150Hz
Paper speed: 6.25, 12.5, 25, 50mm/s
Standard sensitivity: 10±0.2mm/mV
Sensitivity: 2.5, 5, 10, 20 mm/mV
Sensitivity threshold: ≤20μV(10Hz)
Input Impedance: >50MΩ
Animal leak current: <10μA
Input circuit current: ≤0.1μA
Calibration voltage: 1mV±5%
Noise level: <15μVp-p
Power requirements AC: 100~240V, 50/60Hz, 40VA
Printer: High resolution thermal array printer
Recording paper: 63mm x 30m, roll paper
Dimension: 310 mm×230 mm×70 mm (L x W x H)
Net weight: 3.0Kg
| Brand | Sonoscape |
|---|
