BREEDERTEC COW

£3,600.00
In stock
- +

The BreederTec provides unbeatable value for money for preproductive work in cows.

Please contact us on 0208 432 9802 if you need help discussing your requirments or alternatively email us on info@vetimagesolutions.co.uk

0% Finance from £135.23 per month available. See the finance option with Klarna at the checkout for more details.

Delivery 10 -14 working days

Details

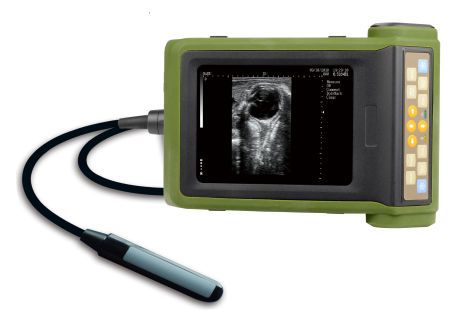

The BreederTec provides unbeatable value for money for reproductive work in cows. This scanner has been used by top vets across the UK and Ireland for extremely detailed work, including foetal sexing.

Please contact us on 0208 432 9802 if you need help discussing your requirments or alternatively email us on info@vetimagesolutions.co.uk

Vet Image Solutions Breeder Tec Cow training with ultrasound image

Standard configuration

Main unit: 1 pc

6.5MHz linear rectal probe : 1 pc  4.5/5.5/6.5/7.5 MHz

Power adapter: 1 pc

Internal lithium battery : 1 pc

Soft rubber coat: 1 pc

Sunshine cover : 1 unit (A,B,C three sections adjustable)

Black plastic suitcase : 1 pc

Base Charger, belt, probe socket spatula: 1 pc for each.

Tech Specification

    ---adopt 5.7” high resolution LED display, with High brightness, high contrast, wide viewing angle, suitable for outdoor use

    ---English language

    ---single probe socket, auto identify probe

    ---Body mark1.General 2. Bovine  3.Canine  4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body mark with probe director

    ---Display modeB2B4B B/MM

    ---Gain0127dB

    ---Contrast2790dB

    ---Gray256

    ---Focus: 1234

    ---Magnification0.81.01.21.51.62.02.43.0

    ---Multi frequency4 different frequencies of each probe

    ---Depth: 8 steps, 240mm,

    ---Frame correlation0123

    ---IP0123

    ---IE0123

    ---Character brightnessselect between160192224255

    ---Key sound: on/off

    ---compressing curve7 kinds



FUNCTIONS:

---Local zooming

---Depth hoist

 ---Image up/down, left/right, black/white

---Pseudo color: 8 kinds

---Four different angles / switchable width

---100 frames permanent storage

---Cine loop256 frames

---Puncture guide, with two approvable guiding lines whose angle and position can be adjustable.

 ---the gravel software package with real-time position line  measurement

---Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.

 ---Cardio measurementDepth, slope, heart rate, cycle

 ---OB measurementCattle, dogs, horses, pig, cats, goats, camels and sheep and pre-gestational age birth

 ---Back-fat and lean automatic calculation function

 ---OB Report

 ---USB port for large capacity storage ( file management, software upgrade, one-key storage)and laser color printer to print image & report

 --- With green energy-saving function

     ---Grid measurement6 differentnonepoint gridline grid, 10mm point ruler, 2mm point ruler, 10mm&2mm point ruler)

     ---Video output:PAL/NTSC

     ---Power supplyAC110/230 -15%~+10, 60/50Hz±1Hz

     ---Batterylarge capacity(5200MAh) battery 1PC, more than 6 hours work

     ---N.W.1.1kg

---Dimension212×154×58mmL×W×H

Vet Image Solutions Breeder Tec Cow training
