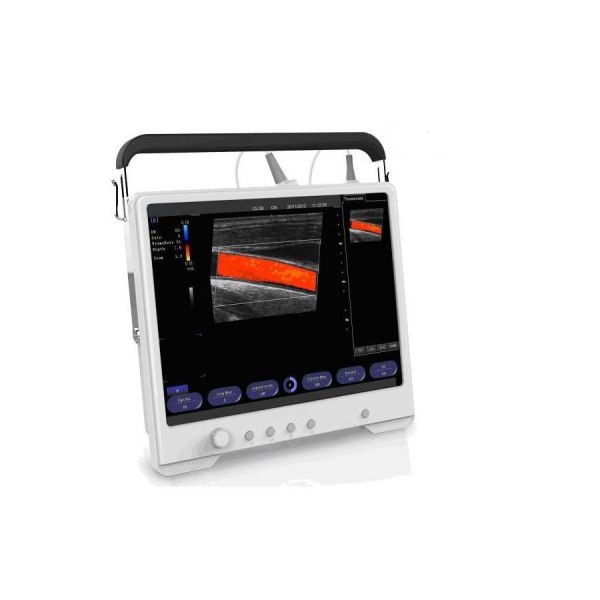

VIS SCANPAD PRO COLOUR WITH MICRO-CONVEX PROBE

The ScanPad Pro colour the new addition to the ScanPad range of professional portable ultrasound scanners.

The Scanpad Pro colour is for the professional breeder and is supplied with a multi frequency micro-convex probe which will deliver ultrasound images of the highest quality.

Portable ultrasound machine Technical Specification

B&W mode:                     B,M,2B,B/M,4B,C,PW, Power,DirPower,THI

Gray sacle:                      256

Display:                           15”LCD monitor

Touchscreen:                   Full Touchscreen

Transducer frequency:     2-11Mhz

Digital technology:          Wide-angle imaging

• Panoramic focusing technology
• Compatible with high and low speed blood
• Rolling M technology
• Panoramic imaging
• Frequency composite
• Space compound
• Real-time Dynamic Aperture

Scanning depth:               310mm

ScanPad pro colour  portable ultrasound machine Imaging Processing

Pre-processing:

Cloud processing technology

Fine blood flow imaging ,high sensitive

8-segment TGC

Gain

Dynamic range

Persisitence

M Soften

Noise suppression

Post-processing:

Image enhancement

Pseudo Color Map

Tissue Specific Imaging

Interface to turn 180°

Left/right reverse

Up/down reverse

Functions

Cine-loop:                               341 frame cine loop memory

Smart touch-screen design     Supported

Multi language:                       Supported

USB ports:                                2

Zoom:                                      Pan zoom for the active image

Amplification:                         10 times

THI:                                         Tissue Harmonic Imaging

Qopt:                                      One-key Optimize

DICOM:                                  DICOM3.0

Print:                                      Report print for text&graph&image

Measurement & Calculations

B mode:                        Distance, angle, area, volume, trace length,distance ratio , area ratio, histogram

M mode:                        Distance, time, slope, Heart Rate

Software packages:      Abdomen,obstetric,Gynecology,Cadiac,Small Parts, Neural

Other Parameters

Transducer connector:                    3 active transducer connector ports

Peripheral ports:                             Video,2 USB ports,1 networking port,1 power inlet

Power supply:                                 100-240V~  50/60Hz  <100VA

Dimensions(main unit):                 358mm(W)*366mm(L)*65mm(H)

Packing dimensions :                     415mm(W)*435mm(L)*140mm(H)

Net weight:                                    About 3.0kg

Gross weight:                                About 4.5kg
